Specification:

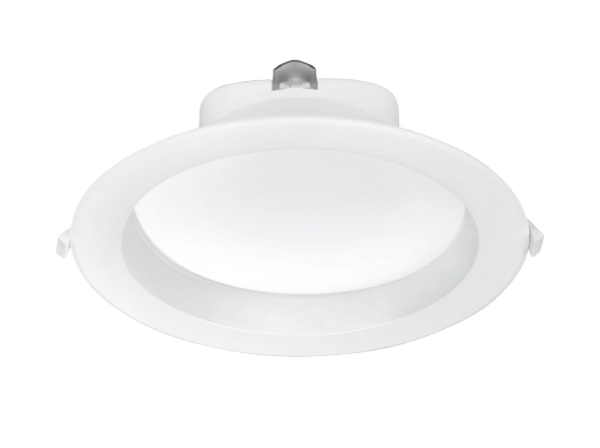

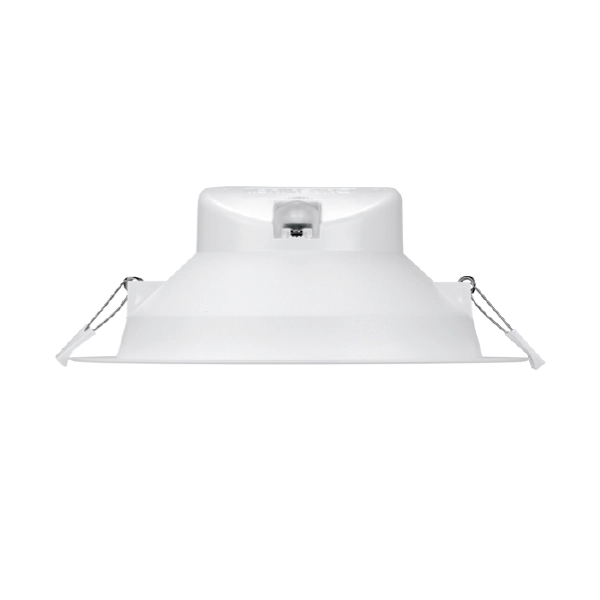

Integrated Baffled LED Downlight

ThermoTec™ heat management technology
Delivering up to 94lm/W
90° beam angle
Pre-wired with plug and play DC male and female connectors
Opal diffuser to reduce glare and for even light distribution
Supplied with integrated LED driver
Designed for a variety of applications
Ideal for retrofit with a wide range of cutouts available
Polycarbonate construction

Product Categories

Cat. No.
Wattslm/WLumensColourBeamSpec SheetsIES Files
Non-Dimmable
AA-BDL367-30*
7W84590lm3000K90°DownloadDownload
AA-BDL367-40*
7W91640lm4000K90°DownloadDownload
AA-BDL4410-30*
10W82820lm3000K90°DownloadDownload
AA-BDL4410-40*
10W90900lm4000K90°DownloadDownload
AA-BDL5714-30*
14W861200lm3000K90°DownloadDownload
AA-BDL5714-40*
14W931300lm4000K90°DownloadDownload
AA-BDL6817-30*
17W881500lm3000K90°DownloadDownload
AA-BDL6817-40*
17W941600lm4000K90°DownloadDownload
AA-BDL9625-30*
25W892230lm3000K90°DownloadDownload
AA-BDL9625-40*
25W942350lm4000K90°DownloadDownload
Dimmable
AA-BDDL367-30*
7W77540lm3000K90°DownloadDownload
AA-BDDL367-40*
7W84590lm4000K90°DownloadDownload
AA-BDDL4410-30*
10W70700lm3000K90°DownloadDownload
AA-BDDL4410-40*
10W75750lm4000K90°DownloadDownload
AA-BDDL5714-30*
14W861200lm3000K90°DownloadDownload
AA-BDDL5714-40*
14W931300lm4000K90°DownloadDownload
AA-BDDL6817-30*
17W881500lm3000K90°DownloadDownload
AA-BDDL6817-40*
17W941600lm4000K90°DownloadDownload
AA-BDDL9625-30*
25W892230lm3000K90°DownloadDownload
AA-BDDL9625-40*
25W942350lm4000K90°DownloadDownload

*Add suffix W or BLK for White or Black finish
