Specification:

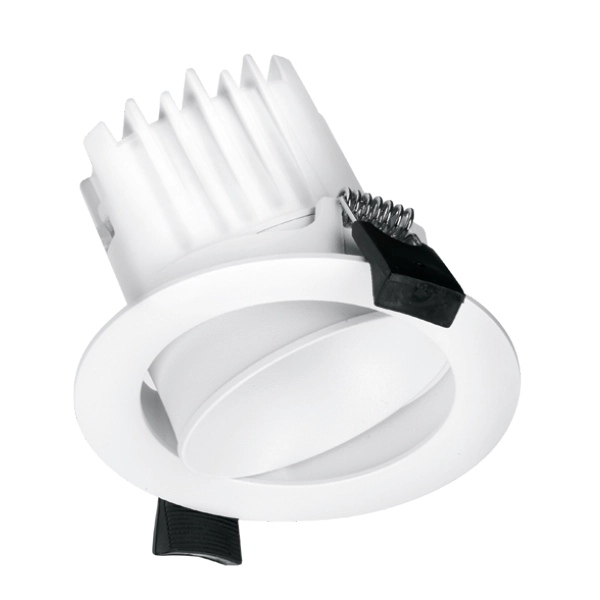

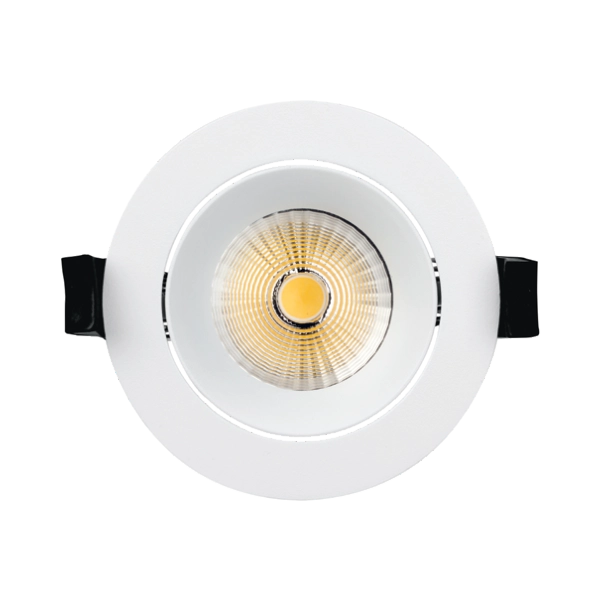

Dimmable Baffled Aluminium LED Downlights

Sleek baffled design with the light source recessed back to reduce glare
50° beam angle for uniform light distribution (non tilt option)
Option to be supplied with remote triac dimmable constant current LED driver

Product Categories

Cat. No.
WattsColourlm/WLumensBeamTypeSpec SheetsIES Files
Non-Dimmable
AA-DLB071-30*
7W3000K92640lm50°FixedDownloadDownload
AA-DLB071-40*
7W4000K97680lm50°FixedDownloadDownload
AA-DLB101-30*
10W3000K92920lm50°FixedDownloadDownload
AA-DLB101-40*
10W4000K97970lm50°FixedDownloadDownload
Dimmable
AA-DDLB071-30*
7W3000K92640lm50°FixedDownloadDownload
AA-DDLB071-40*
7W4000K97680lm50°FixedDownloadDownload
AA-DDLB101-30*
10W3000K92920lm50°FixedDownloadDownload
AA-DDLB101-40*
10W4000K97970lm50°FixedDownloadDownload
Non-Dimmable
AA-DLBT081-30*
8W3000K85680lm36°AdjustableDownloadDownload
AA-DLBT081-40*
8W4000K96770lm36°AdjustableDownloadDownload
Dimmable
AA-DDLBT081-30*
8W3000K85680lm36°AdjustableDownloadDownload
AA-DDLBT081-40*
8W4000K96770lm36°AdjustableDownloadDownload

*Add suffix W or BLK for White or Black finish
Triac, Dali, 1-10V dimmable & EM options available, contact sales office for more information
