Cosmos+™

Specification:

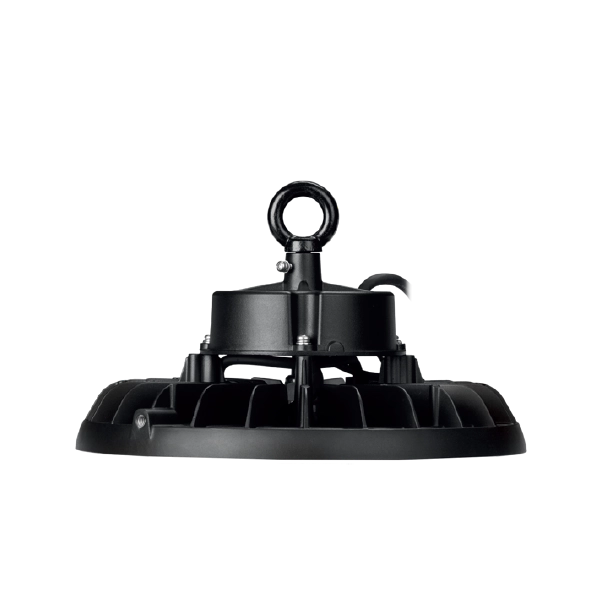

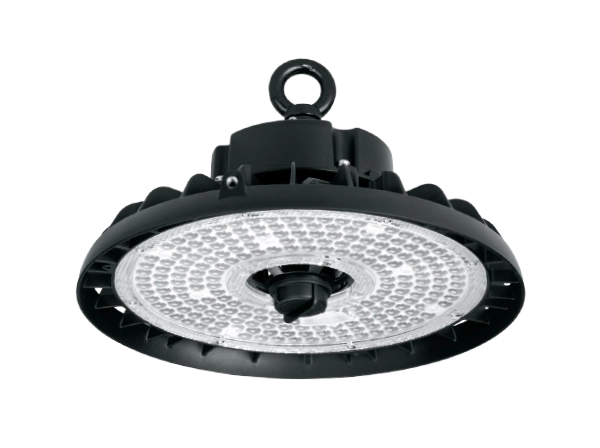

High Power 1-10V Aluminium Dimmable Highbay

Up to 30600 lumens
Delivering 180lm/W
120° beam angle (standard)
Optional 60° and 90° lens available (sold separately)
Dotted lens
-40° to +50° working temperature
Safety cable + 1.5m AC wire

LUMENS NOT WATTS
LOWER ENERGY – SAME LUMENS

Product Categories

Cat. No.
Wattslm/WLumensColourBeam AngleNet WeightSpec SheetsIES Files
AA-HBB90-40
90W18016200lm4000K120°3.0kgsDownloadDownload
AA-HBB130-40
130W18023400lm4000K120°3.0kgsDownloadDownload
AA-HBB170-40
170W18030600lm4000K120°3.0kgsDownloadDownload
Accessories
EN-HBD60A
60°lens for Cosmos+™ AA-HBB90 & AA-HBB130
EN-HBD60B
60° lens for Cosmos+™ AA-HBB170
EN-HBD90A
90° lens for Cosmos+™ AA-HBB90 & AA-HBB130
EN-HBD90B
90° lens for Cosmos+™ AA-HBB170
EN-HBDMB1
Mounting bracket for Cosmos+™ AA-HBB90 & AA-HBB130
EN-HBDMB2
Mounting bracket for Cosmos+™ AA-HBB170
EN-HBDMS

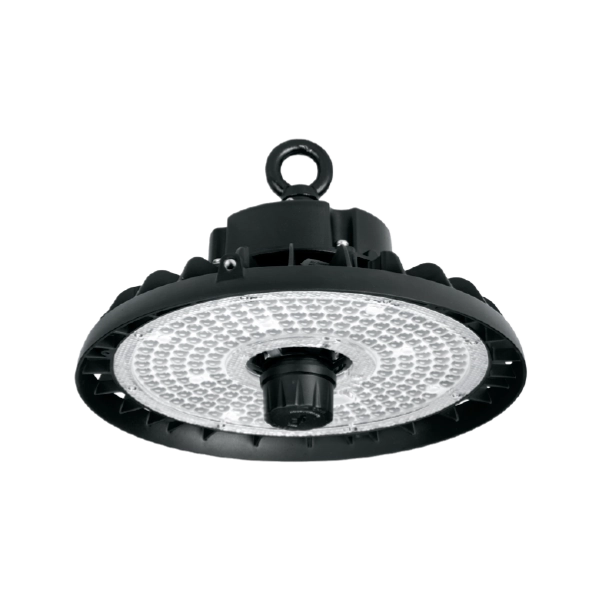

Microwave sensor for Cosmos+™
EN-HBDRC
Remote controller for Cosmos+™ microwave highbay
EN-HBD-AR-M
Aluminium reflector AA-HBB90 & AA-HBB130
EN-HBD-AR-L
Aluminium reflector AA-HBB170
EN-HBD-PR-M
Acrylic reflector AA-HBB90 & AA-HBB130
EN-HBD-PR-L
Acrylic reflector AA-HBB170
