LEDline™ 24V IP20 High Efficiency
Specification:

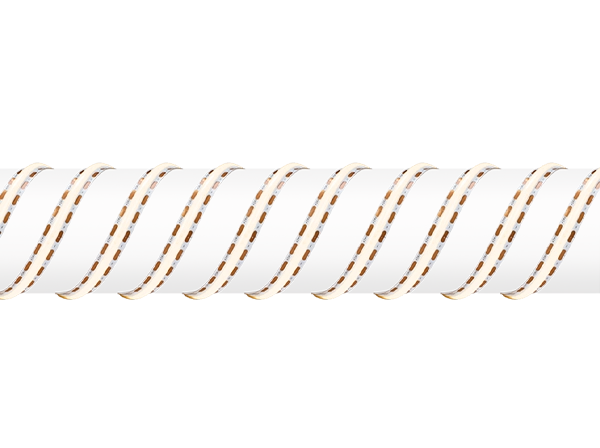

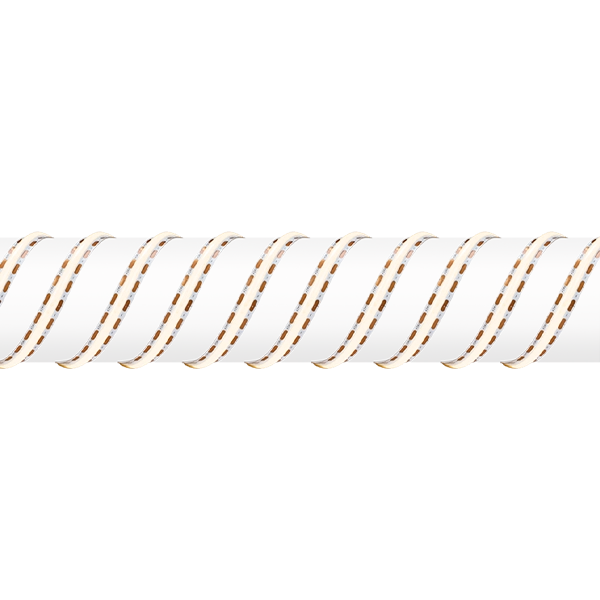

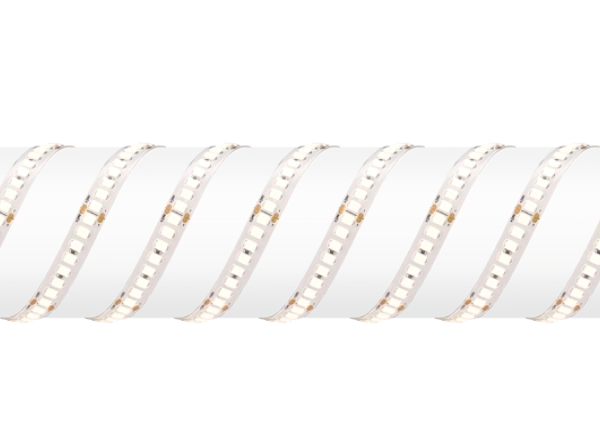

24V IP20 High Efficiency Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 153lm/W
Cut points every 33mm for maximum flexibility
Beam angle of 120°
240 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m

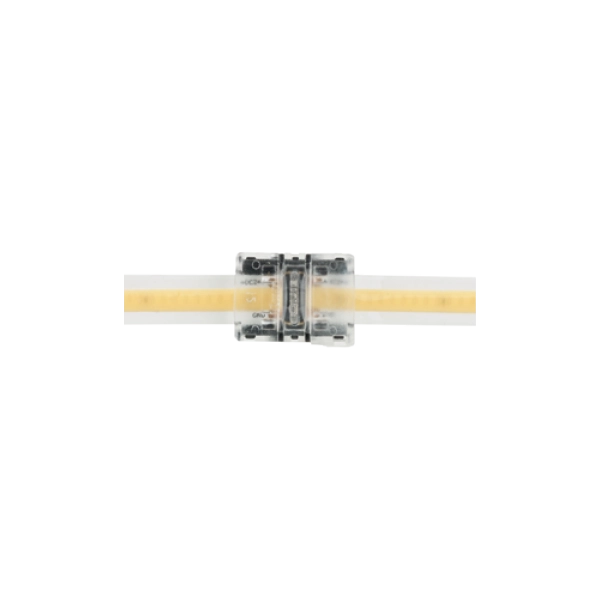

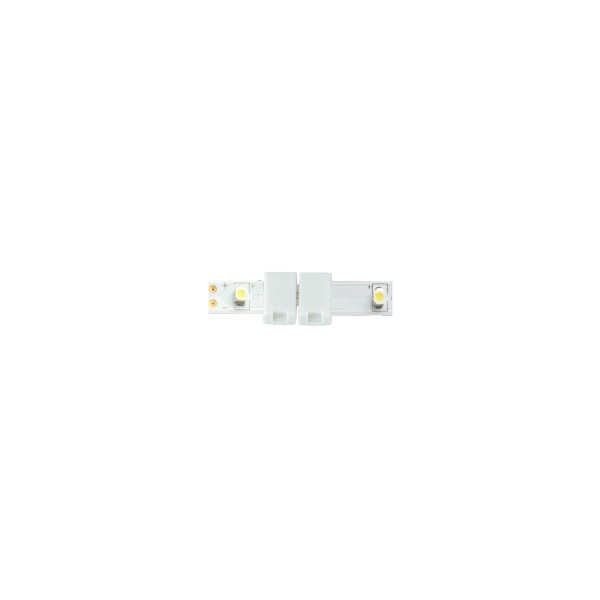

LEDline™ single colour strip connector

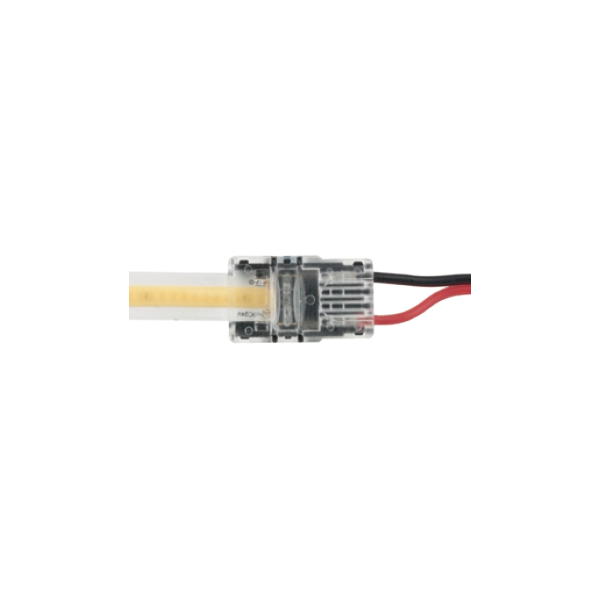

LEDline™ single colour wired strip connector

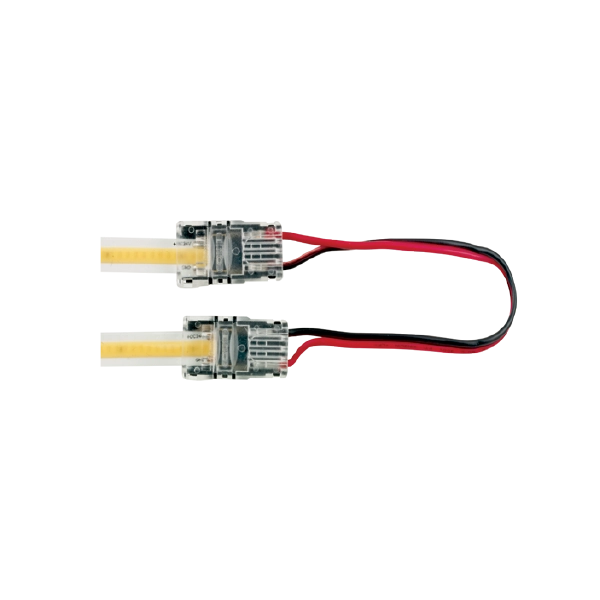

LEDline™ single colour inter-connection strip connector
Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST10150-30 | 15W | 240 | 3000K | 2025lm | 135 |  |
AA-ST10150-40 | 15W | 240 | 4000K | 2175lm | 145 | |
AA-ST10150-50 | 15W | 240 | 5000K | 2234lm | 149 | |
AA-ST10150-65 | 15W | 240 | 6500K | 2294lm | 153 | |
Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA10SA | LEDline™ single colour strip connector |
||||||
AA-STA10SB | LEDline™ single colour wired strip connector |
||||||
AA-STA10SC | LEDline™ single colour inter-connection strip connector |
||||||
Cat. No. | Description | Metres per driver |
|---|---|---|
LED Drivers |
||
SV-LRS-35-24 | 35W non-dimmable 24V constant voltage driver | 2m |
SV-LRS-50-24 | 50W non-dimmable 24V constant voltage driver | 3m |
SV-LRS-75-24 | 75W Non-Dimmable 24V constant voltage driver | 4.5m |
SV-LPV-100-24 | 100W non-dimmable 24V constant voltage driver | 6m |
SV-LPV-150-24 | 150W non-dimmable 24V constant voltage driver | 9m |
Max single run 5m |
||
