LEDline™ 24V IP20 Low Wattage
Specification:

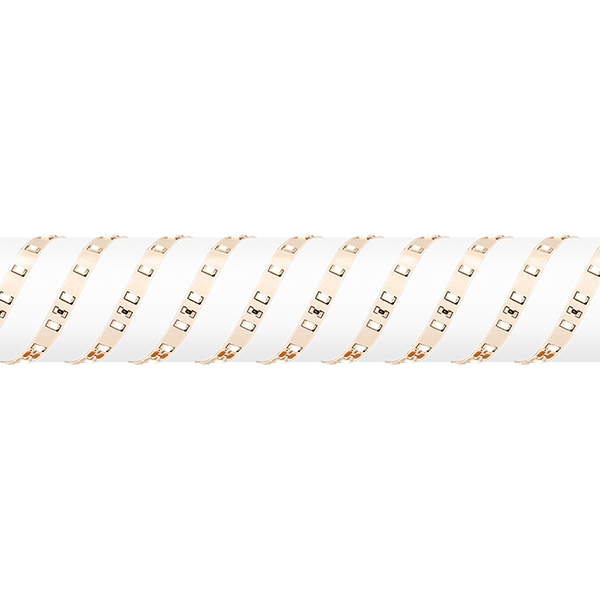

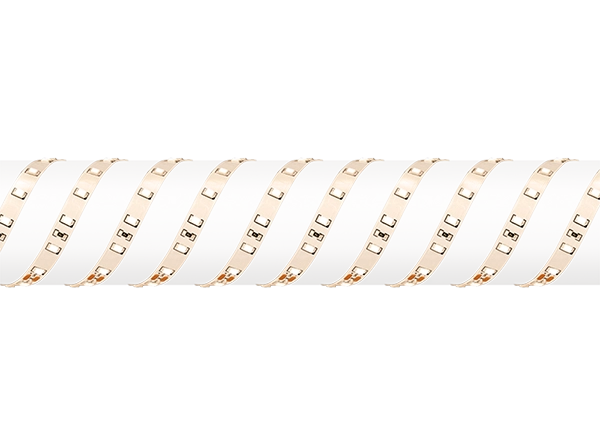

24V IP20 Low Wattage Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 153lm/W
Cut points every 100mm for maximum flexibility
Beam angle of 120°
80 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
LEDline™ single colour strip connector
LEDline™ single colour wired strip connector
LEDline™ single colour inter-connection strip connector
Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST838-30 | 3.8W | 80 | 3000K | 513lm | 135 |  |
AA-ST838-40 | 3.8W | 80 | 4000K | 551lm | 145 | |
AA-ST838-50 | 3.8W | 80 | 5000K | 566lm | 149 | |
AA-ST838-65 | 3.8W | 80 | 6500K | 581lm | 153 | |
Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA8SA | LEDline™ single colour strip connector |
||||||
AA-STA8SB | LEDline™ single colour wired strip connector |
||||||
AA-STA8SC | LEDline™ single colour inter-connection strip connector |
||||||
Cat. No. | Description | Metres per driver |
|---|---|---|
LED Drivers |
||
SV-LRS-35-24 | 35W non-dimmable 24V constant voltage driver | 8m |
SV-LRS-50-24 | 50W non-dimmable 24V constant voltage driver | 12m |
SV-LRS-75-24 | 75W non-dimmable 24V constant voltage driver | 17m |
SV-LRS-100-24 | 100W non-dimmable 24V constant voltage driver | 23m |
Max single run 5m |
||
