LEDline™
Specification:

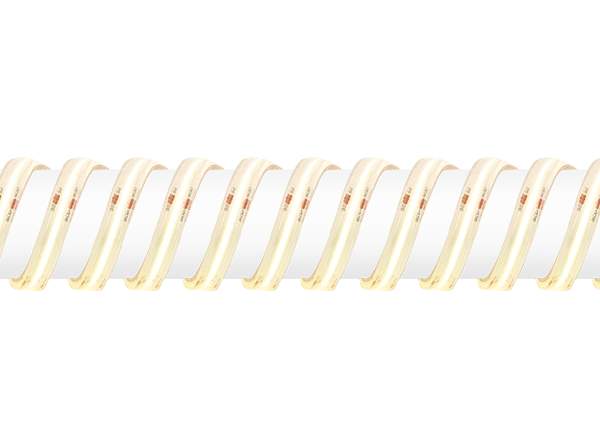

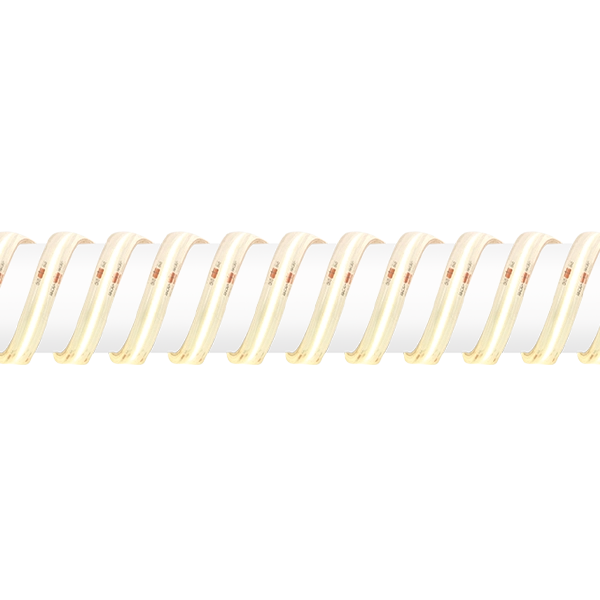

24V IP67 COB ECO Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 100lm/W
Cut points every 50mm for maximum flexibility
Beam angle of 120°
320 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 10m
Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST108CIP-30 | 8W | 320 | 3000K | 680lm | 85 |  |
AA-ST108CIP-40 | 8W | 320 | 4000K | 720lm | 90 | |
AA-ST108CIP-50 | 8W | 320 | 5000K | 760lm | 95 | |
AA-ST108CIP-65 | 8W | 320 | 6500K | 800lm | 100 | |
Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA10IP | LEDline™ COB IP67 strip connector kit |
||||||
Cat. No. | Description | Metres per driver |
|---|---|---|
LED Drivers |
||
SV-LPV-35-24 | 35W non-dimmable IP67 24V constant voltage driver | 4m |
SV-LPV-60-24 | 60W non-dimmable IP67 24V constant voltage driver | 7m |
SV-LPV-100-24 | 100W non-dimmable IP67 24V constant voltage driver | 10m |
Max single run 5m |
||
