LEDline™ 48V IP20 Ultra Long

Specification:

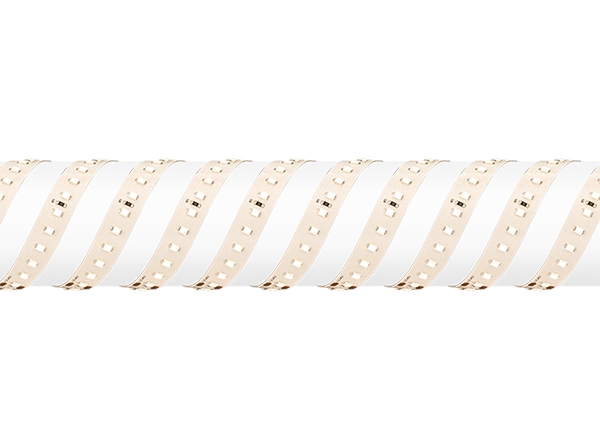

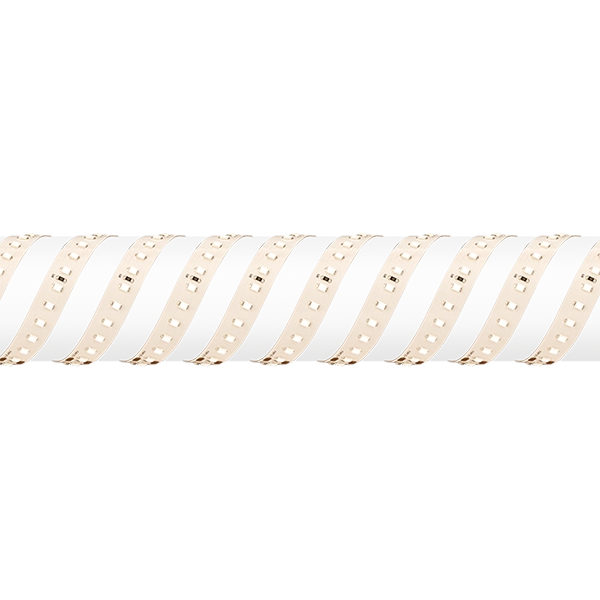

48V IP20 Ultra Long Single Colour LED Strip

Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 127lm/W
Cut points every 125mm for maximum flexibility
Beam angle of 120°
112 LEDs per metre
Reel length of 30m

LEDline™ single colour strip connector

LEDline™ single colour wired strip connector

LEDline™ single colour inter-connection strip connector

Product Categories

Cat. No.
Watts/mNo. of LEDs/mColourlm/mlm/WSpec Sheets
AA-ST1096UL-30
9.6W1123000K1056lm110Download
AA-ST1096UL-40
9.6W1124000K1152lm120Download
AA-ST1096UL-50
9.6W1125000K1183lm123Download
AA-ST1096UL-65
9.6W1126500K1215lm127Download
Accessories
AA-STA10SA
LEDline™ single colour strip connector
AA-STA10SB
LEDline™ single colour wired strip connector
AA-STA10SC
LEDline™ single colour inter-connection strip connector
Cat. No.
DescriptionMetres per driver
LED Drivers
SV-LRS-100-48
100W non-dimmable 48V constant voltage driver9m
SV-LRS-150-48
150W non-dimmable 48V constant voltage driver14m
SV-LRS-200-48
200W non-dimmable 48V constant voltage driver19m
SV-LRS-350-48
350W non-dimmable 48V constant voltage driver30m
Max single run 30m
