LEDline™ 24V IP20 COB Pro
Specification:

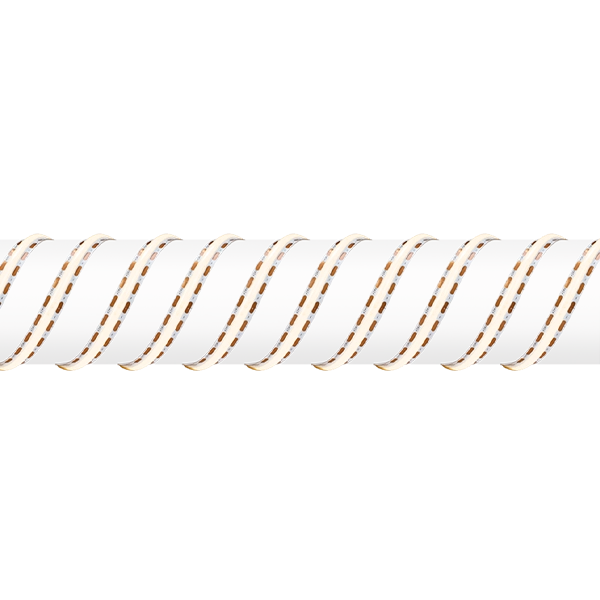

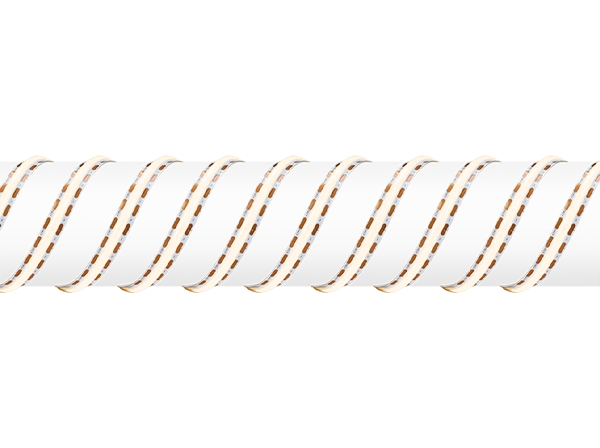

24V IP20 COB PRO Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 105lm/W
Cut points every 46mm for maximum flexibility
Beam angle of 120°
528 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
LEDline™ single colour strip connector
LEDline™ single colour wired strip connector
LEDline™ single colour inter-connection strip connector
Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST10150C-30 | 15W | 528 | 3000K | 1425lm | 105 |  |
AA-ST10150C-40 | 15W | 528 | 4000K | 1500lm | 100 | |
AA-ST10150C-50 | 15W | 528 | 5000K | 1541lm | 103 | |
AA-ST10150C-65 | 15W | 528 | 6500K | 1582lm | 105 | |
Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA10CA | LEDline™ COB single colour strip connector |
||||||
AA-STA10CB | LEDline™ COB single colour wired strip connector |
||||||
AA-STA10CC | LEDline™ COB single colour inter-connection strip connector |
||||||
AA-STA10CD | LEDline™ COB single colour 90° strip connector |
||||||
Cat. No. | Description | Metres per driver |
|---|---|---|
LED Drivers |
||
SV-LRS-35-24 | 35W non-dimmable 24V constant voltage driver | 2m |
SV-LRS-50-24 | 50W non-dimmable 24V constant voltage driver | 3m |
SV-LRS-75-24 | 75W non-dimmable 24V constant voltage driver | 4.5m |
SV-LRS-100-24 | 100W non-dimmable 24V constant voltage driver | 6m |
SV-LRS-150-24 | 150W non-dimmable 24V constant voltage driver | 9m |
Max single run 5m |
||
