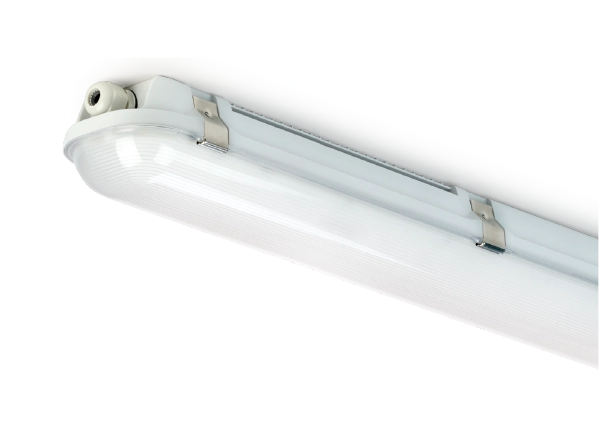

LinearPac+™
Specification:

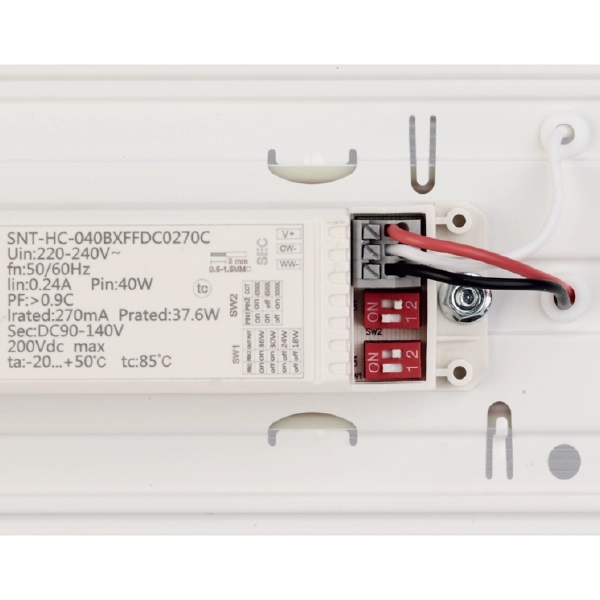

Colour & Wattage Selectable LED Anti-Corrosives
Clip in gear tray for ease of installation and maintenance
Delivering up to 160lm/W
Stainless steel anti-tamper clips
2x IP66 rated cable glands supplied
IK10 rated impact resistance
Adjustable light detector from 2-50 lux for microwave option
Adjustable hold time of 5 seconds to 15 minutes for microwave option
-10°C to 50°C ambient operating temperature (for standard and MS version, 0-40°C for EM option)
Cat. No. | Watts | lm/W | Lumens | Colour | Beam | Spec Sheets | IES Files |
|---|---|---|---|---|---|---|---|
Twin 4' (1200mm) |
|||||||
AA-ANT12WSF-CCT3* | 20W / 24W / 30W / 36W | up to 160 | 5760lm | 3000K / 4000K / 6500K | 110° |  | |
Twin 5' (1500mm) |
|||||||
AA-ANT15WSF-CCT3* | 32W / 38W / 48W / 58W | up to 160 | 9280lm | 3000K / 4000K / 6500K | 110° | | |
*Add suffix EM for Emergency, MS for Microwave Sensor options available upon request

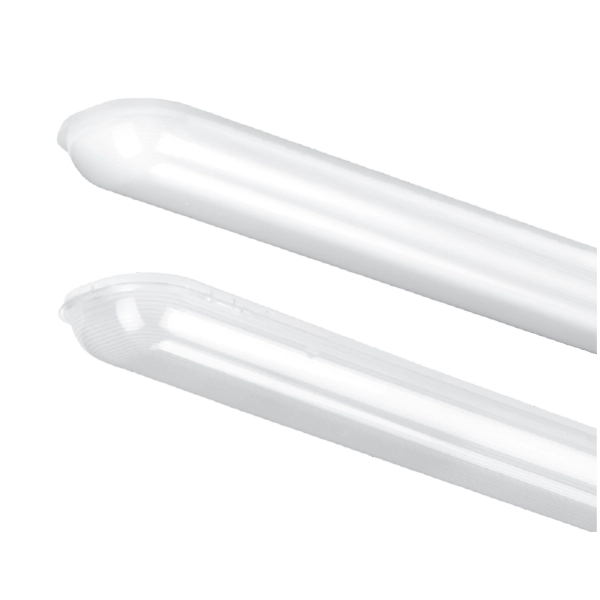

Cat. No. | Description |
|---|---|
AA-ANTA12-M | 4' milky diffuser |
AA-ANTA12-F | 4' milky diffuser |
AA-ANTA15-M | 5' milky diffuser |
AA-ANTA15-F | 5' milky diffuser |
