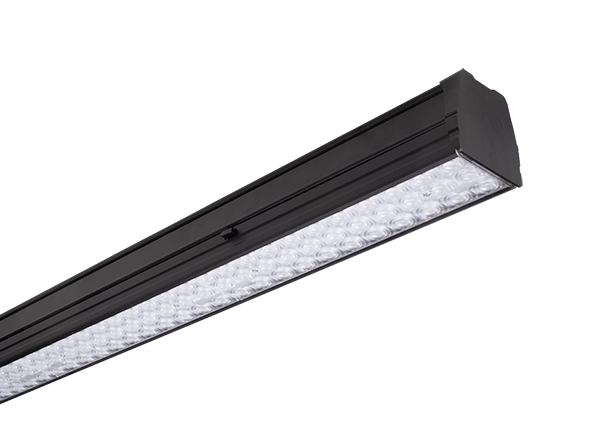

Linium+™

Specification:

Retail LED Linear Wattage Selectable

Modular system incorporating a trunking rail (housing wiring harnesses) and separate clip in luminaire
Delivering up to 180lm/W
Easy installation – plug&play
Luminaire joins to create a continuous line of light – up to 70m
Multiple lens option available
3 wire, 5 wire, 7 wire and 8 wire options available
Circuit selector incorporated
Daylight and motion sensor options available

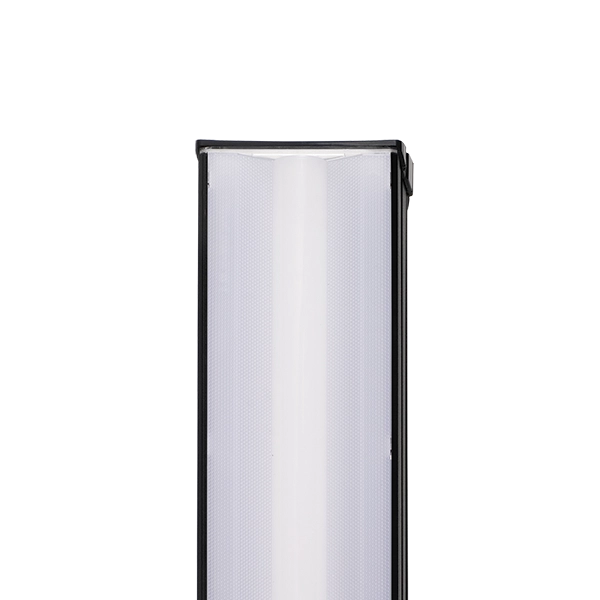

Linium Luxline Lens

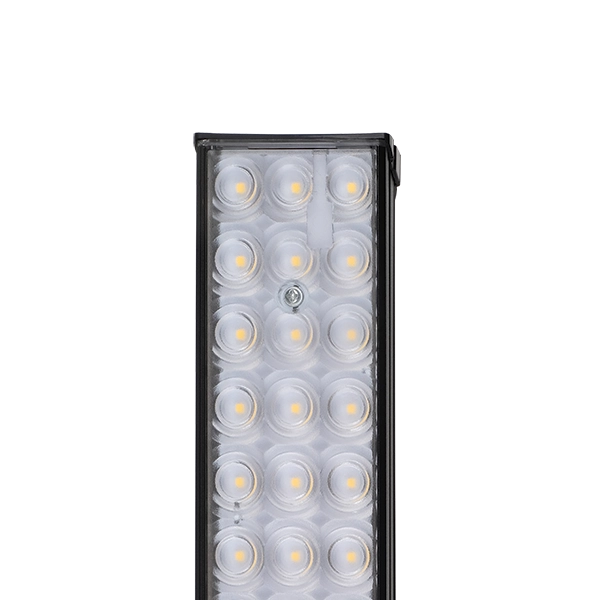

Linium Stellar Lens

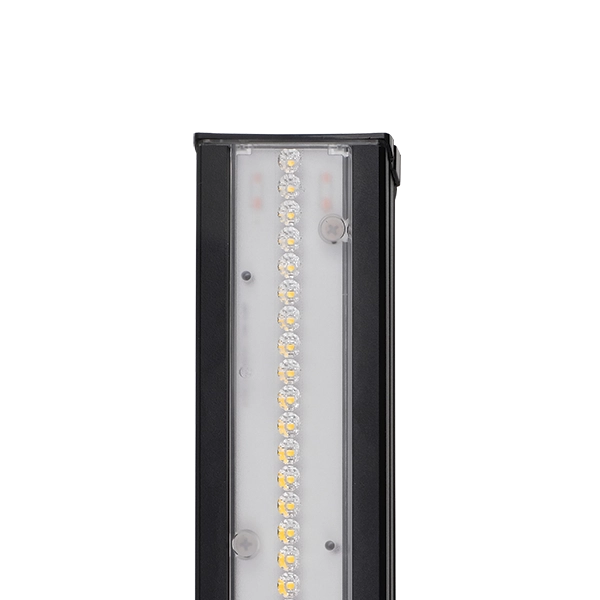

Linium Prism Lens

Product Categories

Cat. No.
Wattslm/WLumensColourSpec SheetsIES Files
2' (600mm)
16W / 20W / 24W / 30Wup to 180up to 5400lm3000K / 3500K / 4000K / 5000KDownloadDownload
4' (1200mm)
16W / 20W / 24W / 30Wup to 180up to 7200lm3000K / 3500K / 4000K / 5000KDownloadDownload
5' (1500mm)
36W / 45W / 55W / 60Wup to 180up to 10800lm3000K / 3500K / 4000K / 5000KDownloadDownload

Emergency and Microwave Sensor options available upon request
Contact sales office for information on 1800mm & 2400mm length options
Available in 30°, 60°, 90° 120°, asymetrical and double asymmetrical

Suspension kit

Track light module for 2′, 4′, 5′
