CyaLux™ Medical Panel
Specification:

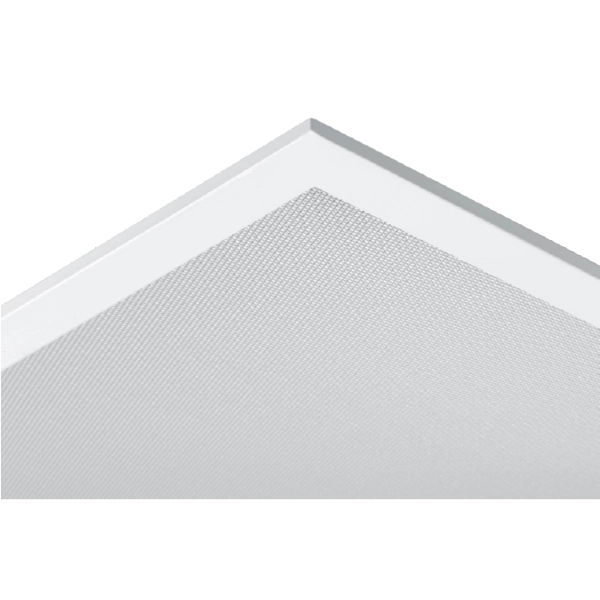

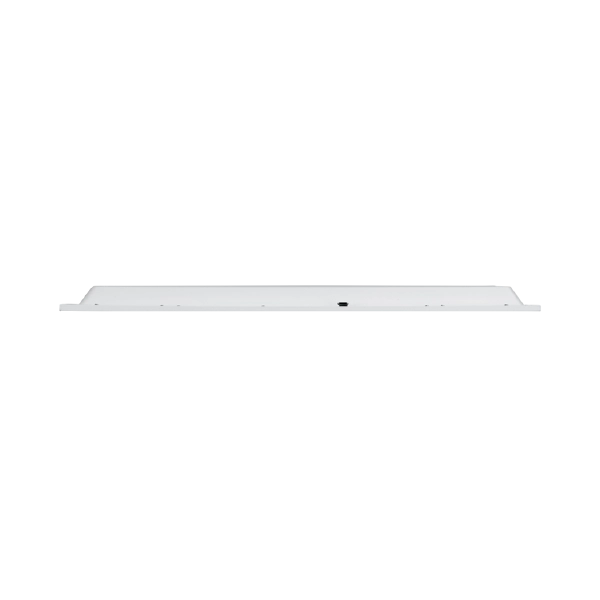

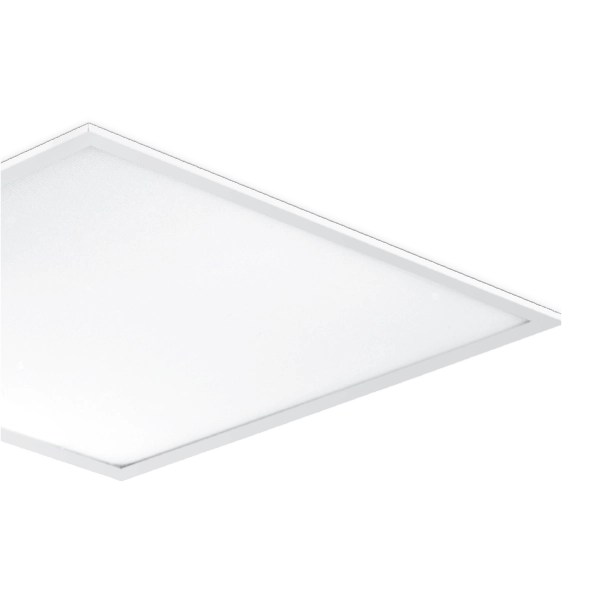

Aluminium Prismatic Lens LED Medical Flat Panel
Cyanosis index 1.5
Delivering 120lm/W
UGR19
No light guide, removing the risk of yellowing
PMMA lenses for uniformity of light
SDCM <4 providing consistent light colour quality
Lifetime is not affected by frequent switching when using occupancy controls
Flicker free driver
Power Factor > 0.9
Suitable for installation in 15 and 24mm T-bar ceilings
Cat. No. | Watts | lm/W | Lumens | Colour | Beam | Spec Sheets | IES Files |
|---|---|---|---|---|---|---|---|
600x600mm |
|||||||
AA-MED6060-40 | 40W | 120 | 4800lm | 4000K | 90° |  | |
1200x600mm |
|||||||
AA-MED1260-40 | 50W | 120 | 6000lm | 4000K | 90° | | |
Triac, Dali, 1-10V dimmable & EM options available, contact sales office for more information
Cat. No. | Description | Dimensions |
|---|---|---|
Surface Mount Boxes |
||
SV-SM103B | Surface mount box for AA-MED6060 | 600 x 600 x 50mm |
SV-SM106B | Surface mount box for AA-MED1260 | 1200 x 600 x 50mm |
