Arcus+™

Specification:

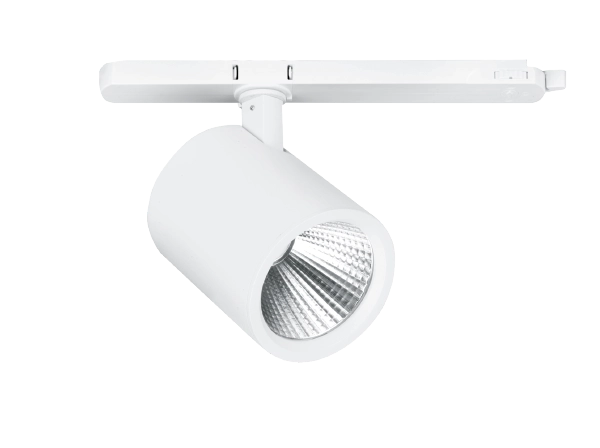

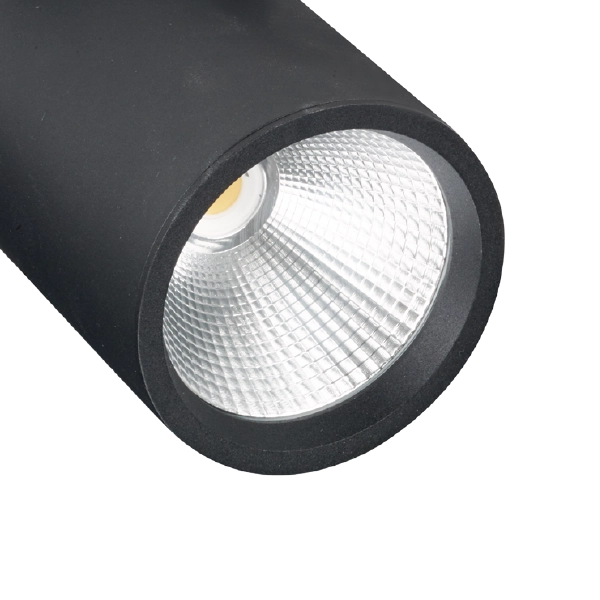

3 Circuit Aluminium LED Track Lighting

Compact styling with powerful outputs, Arcus is ideal for retail and display lighting
Delivering up to 140lm/W
CRI 90 available for high colour rendering accuracy
15°, 24°, 36° and 60° beam angle options available
Dimmable versions available on request
355° rotation and 90° horizontal adjustment
Interchangeable reflector translates to flexibility for changing site conditions

Product Categories

Cat. No.
Wattslm/WLumensColourBeamSpec SheetsIES Files
CRI80
AA-TSA248036-30*
24W1403350lm3000K36°DownloadDownload
AA-TSA248036-35*
24W1413380lm3500K36°DownloadDownload
AA-TSA248036-40*
24W1423400lm4000K36°DownloadDownload
CRI90
AA-TSA249036-30*
24W1293100lm3000K36°DownloadDownload
AA-TSA249036-35*
24W1313150lm3500K36°DownloadDownload
AA-TSA249036-40*
24W1323180lm4000K36°DownloadDownload
CRI80
AA-TSA328036-30*
32W1394450lm3000K36°DownloadDownload
AA-TSA328036-35*
32W1404480lm3500K36°DownloadDownload
AA-TSA328036-40*
32W1414500lm4000K36°DownloadDownload
CRI90
AA-TSA329036-30*
32W1304160lm3000K36°DownloadDownload
AA-TSA329036-35*
32W1314200lm3500K36°DownloadDownload
AA-TSA329036-40*
32W1324230lm4000K36°DownloadDownload

Restore your product at the end of it’s life cycle

The Enfiniti™ range of track lights allows the customer to change the COB (Chip on Board) light source and driver at the end of its life offering significant benefits. This capability ensures the longevity and sustainability of the lighting system, as users can replace only the expired components rather than the entire fixture, which is both cost-effective and environmentally friendly.

Replaceable COB at end of life (Zhaga)

Replaceable driver

Changeable reflectors 24°, 36° & 50° beam angles
