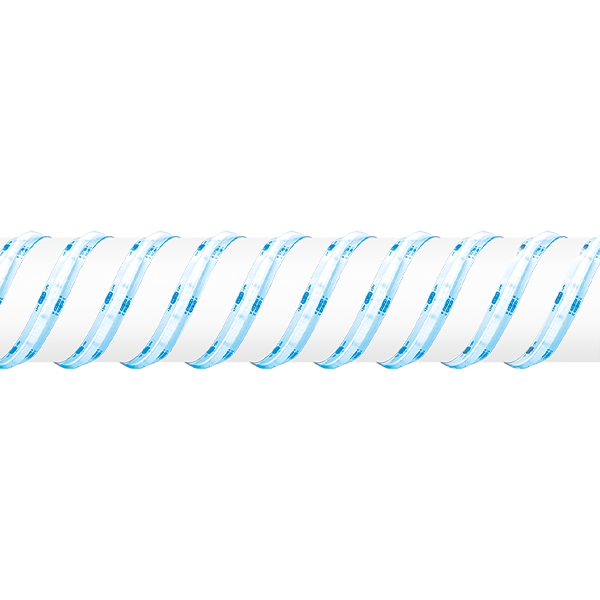

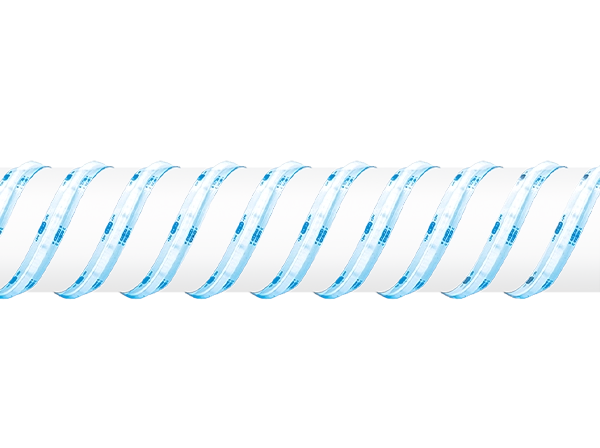

LEDline™ 24V COB RGBW
Specification:
24V IP20 COB RGBW LED Strip
COB RGBW flexible strip with 3M self adhesive backing
Cut points every 63mm for maximum flexibility
Beam angle of 120°
896 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
3 year warranty
AA-STA12CRGBWA LEDline™ COB RGBW Strip coupler/joiner
AA-STA12CRGBWB LEDline™ COB RGBW wired strip connector
AA-STA12CRGBWC LEDline™ COB RGBW wired inter-connector
AA-STA12CRGBWD LEDline™ COB RGBW 90° strip coupler/joiner
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12160CRGBW-30 | 16W | 896 | 3000K | 640lm combined | 40 |  |
AA-ST12160CRGBW-40 | 16W | 896 | 4000K | 640lm combined | 40 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12CRGBWA | LEDline™ COB RGBW strip coupler/joiner |
||||||
AA-STA12CRGBWB | LEDline™ COB RGBW wired strip connector |
||||||
AA-STA12CRGBWC | LEDline™ COB RGBW inter-connector |
||||||
AA-STA12CRGBWD | LEDline™ COB RGBW single colour 90° strip coupler/joiner |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 2.4m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 3.6m |
AA-DV10024-CV | 100W Non-Dimmable 24V Constant Voltage Driver | 5.0m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 7.5m |
| Max single run 5m | ||
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12160CRGBW-30 | 16W | 896 | 3000K | 640lm combined | 40 | |
AA-ST12160CRGBW-40 | 16W | 896 | 4000K | 640lm combined | 40 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12CRGBWA | LEDline™ COB RGBW strip coupler/joiner |
||||||
AA-STA12CRGBWB | LEDline™ COB RGBW wired strip connector |
||||||
AA-STA12CRGBWC | LEDline™ COB RGBW inter-connector |
||||||
AA-STA12CRGBWD | LEDline™ COB RGBW single colour 90° strip coupler/joiner |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 2.4m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 3.6m |
AA-DV10024-CV | 100W Non-Dimmable 24V Constant Voltage Driver | 5.0m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 7.5m |
| Max single run 5m | ||
