LEDline™ 24V IP20 Eco Single Colour

Specification:

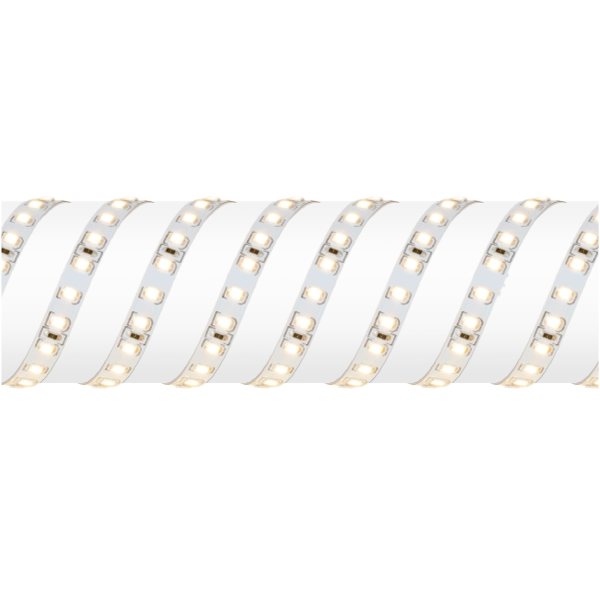

24V IP20 ECO Single Colour LED Strip

Single colour flexible led strip with 3M™ self adhesive backing
High efficiency up to 106lm/W
Cut points every 50mm for maximum flexibility
Beam angle of 120°
120 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
3 year warranty

EN-ST224A LEDline™ single colour strip coupler/joiner

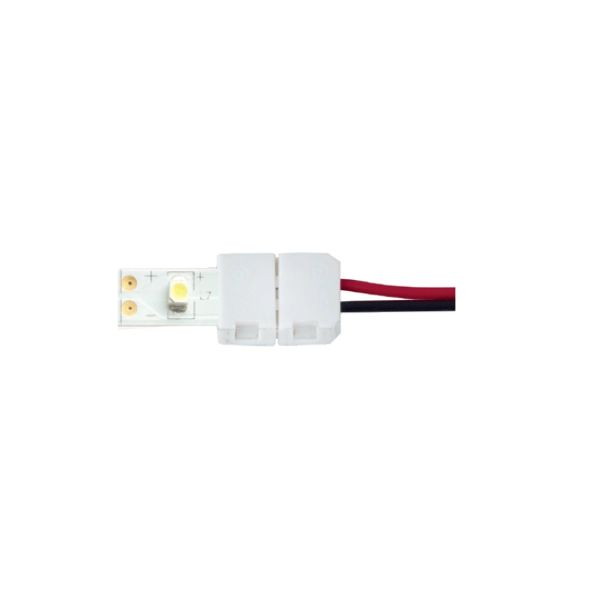

EN-ST224B LEDline™ single colour wired strip connector

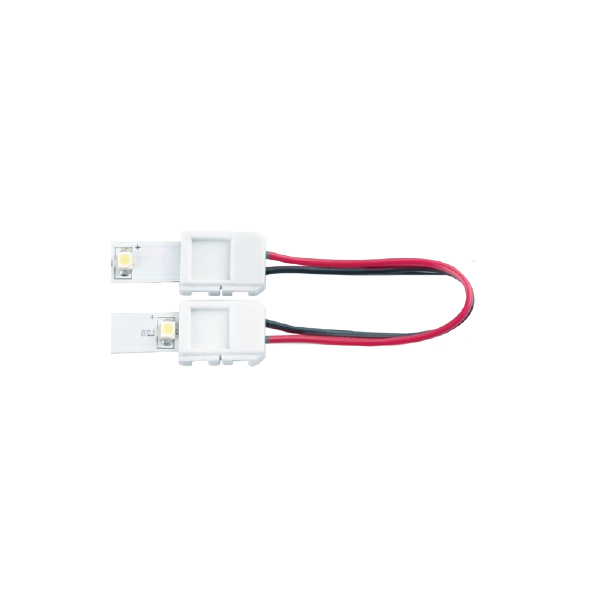

EN-ST224C LEDline™ single colour wired inter-connector

Product Categories

Cat. No.Watts/mNo. of LEDs/mColourlm/mlm/WSpec Sheets
EN-ST224-27
9.6W1202700K950lm99Download
EN-ST224-30
9.6W1203000K950lm99Download
EN-ST224-40
9.6W1204000K1020lm106Download
EN-ST224-BLU
9.6W120Blue-Download
Accessories
EN-ST224A
LEDline™ single colour strip coupler/joiner
EN-ST224B
LEDline™ single colour wired strip connector
EN-ST224C
LEDline™ single colour wired inter-connector
Cat. No.DescriptionMetres per driver
LED Drivers
AA-DV4824-CV
48W Non-Dimmable 24V Constant Voltage Driver4.0m
AA-DV7224-CV
72W Non-Dimmable 24V Constant Voltage Driver6.0m
AA-DV10024-CV
100W Non-Dimmable 24V Constant Voltage Driver8.3m
AA-DV15024-CV
150W Non-Dimmable 24V Constant Voltage Driver12.5m
Max single run 5m
Cat. No.Watts/mNo. of LEDs/mColourlm/mlm/WSpec Sheets
EN-ST224-27
9.6W1202700K950lm99Download
EN-ST224-30
9.6W1203000K950lm99Download
EN-ST224-40
9.6W1204000K1020lm106Download
EN-ST224-BLU
9.6W120Blue-Download
Accessories
EN-ST224A
LEDline™ single colour strip coupler/joiner
EN-ST224B
LEDline™ single colour wired strip connector
EN-ST224C
LEDline™ single colour wired inter-connector
Cat. No.DescriptionMetres per driver
LED Drivers
AA-DV4824-CV
48W Non-Dimmable 24V Constant Voltage Driver4.0m
AA-DV7224-CV
72W Non-Dimmable 24V Constant Voltage Driver6.0m
AA-DV10024-CV
100W Non-Dimmable 24V Constant Voltage Driver8.3m
AA-DV15024-CV
150W Non-Dimmable 24V Constant Voltage Driver12.5m
Max single run 5m
