LEDline™ 24V IP20 RGB
Specification:
24V IP20 RGB LED Strip
High density colour changing flexible LED strip with 3M™ self adhesive backing
Cut points every 100mm for maximum flexibility
Beam angle of 120°
60 LEDs per metre
Programmable settings including static colours and colour changing modes
For runs over 5m individual lengths should be connected in parallel
Reel length of 30m
3 year warranty

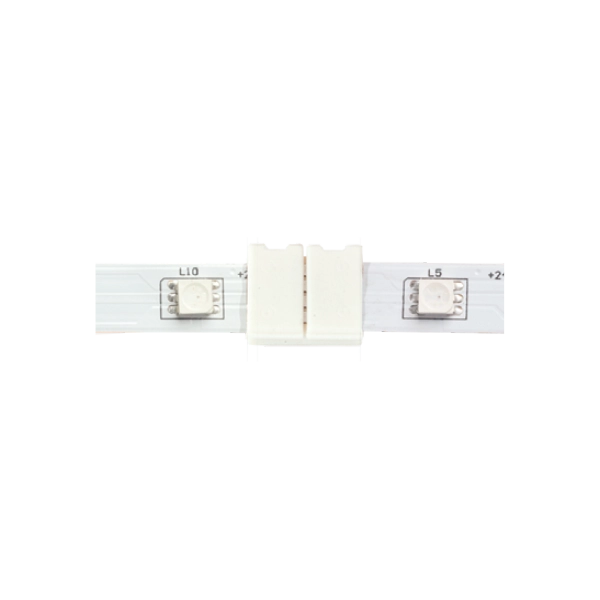

EN-STRGBA LEDline™ RGB strip coupler/joiner

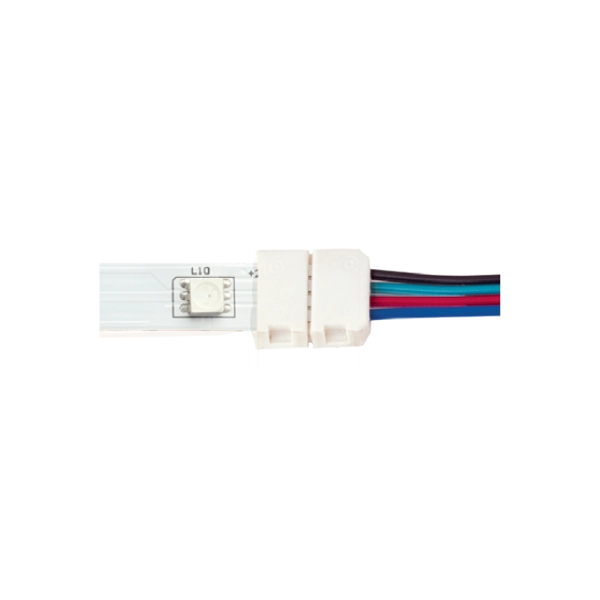

EN-STRGBB LEDline™ RGB wired strip connector

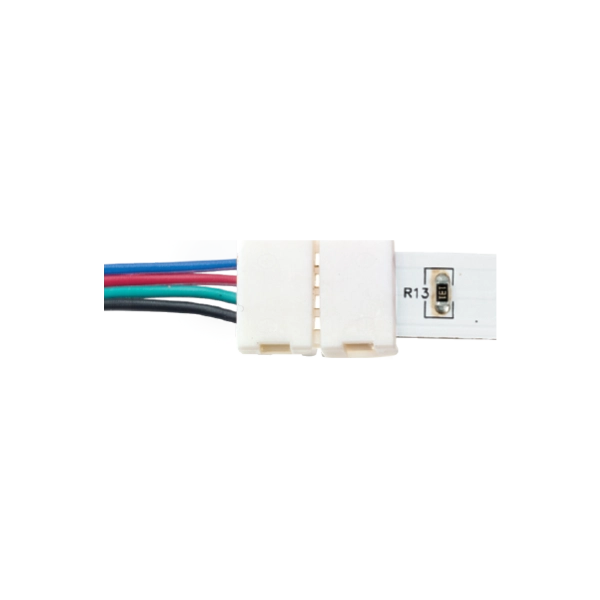

EN-STRGBC LEDline™ RGB wired inter-connector
| Cat. No. | Watts/m | No. of LEDs/m | Colour | Spec Sheets |
|---|---|---|---|---|
EN-ST224RGB | 14.4W | 60 | RGB |  |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
EN-STRGBA | LEDline™ RGB strip coupler/joiner |
||||||
EN-STRGBB | LEDline™ RGB wired strip connector |
||||||
EN-STRGBC | LEDline™ RGB inter-connector |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 2.7m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 4.0m |
AA-DV10024-CV | 100W Non-Dimmable 24V Constant Voltage Driver | 5.6m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 8.3m |
| Max single run 5m | ||
