LEDline™ 24V IP20 RGBCX
Specification:

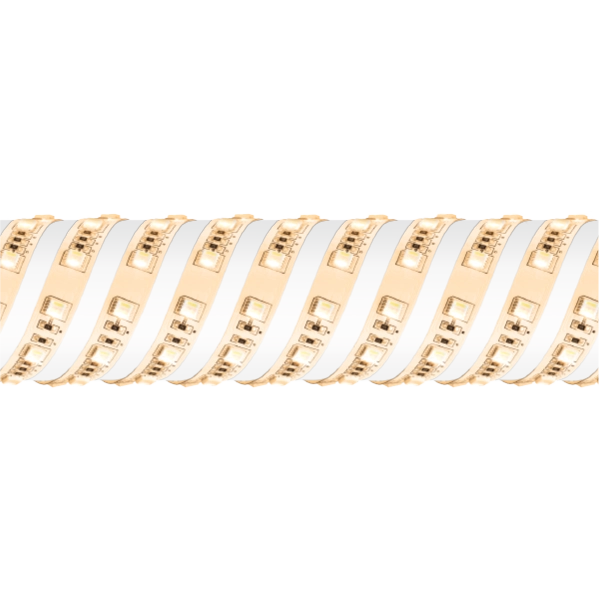

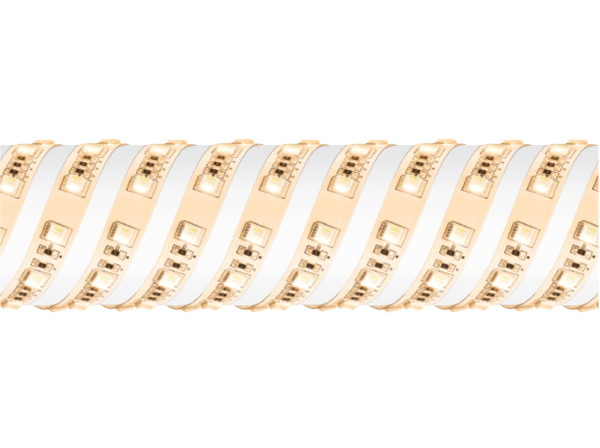

24V IP20 RGB + Tuneable White LED Strip
High density RGB with tuneable white colour changing flexible LED strip with 3M™ self adhesive backing
Cut points every 100mm for maximum flexibility
Beam angle of 120°
60 LEDs per metre
RGB and tuneable white colour temperature between 2500-6500K
Maximum run of 5m
For runs over 5m individual lengths should be connected in parallel
Reel length 30m
3 year warranty

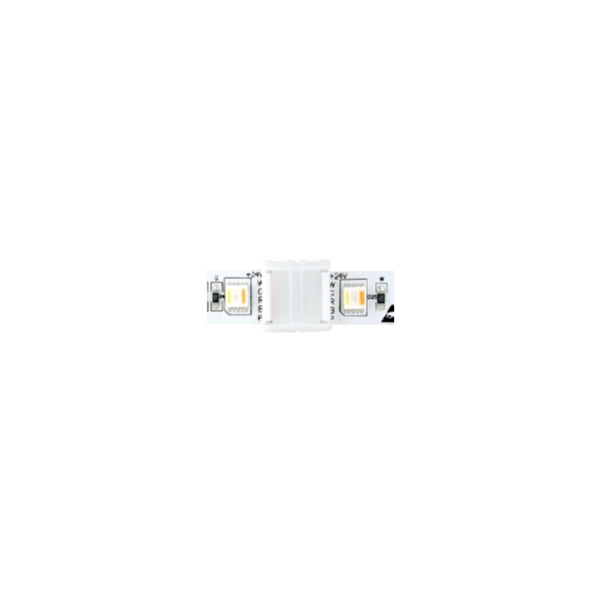

EN-STRGBCXA LEDline™ RGBCX strip coupler/joiner

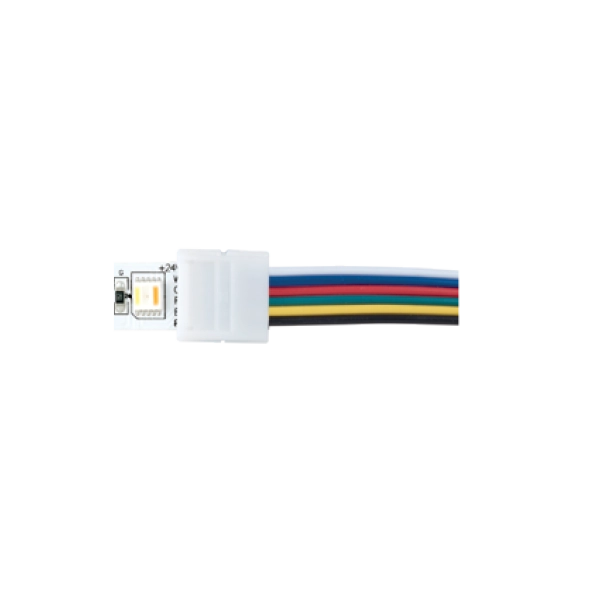

EN-STRGBCXB LEDline™ RGBCX wired strip connector

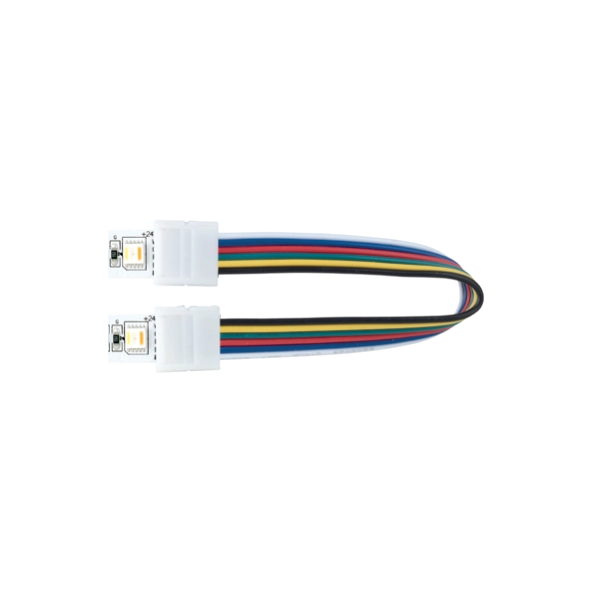

EN-STRGBCXC LEDline™ RGBCX wired inter-connector
| Cat. No. | Watts/m | No. of LEDs/m | Colour | Spec Sheets |
|---|---|---|---|---|
EN-ST80RGBCX | 24W | 60 | RGB + Tuneable White |  |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
EN-STRGBCXA | LEDline™ RGBCX strip coupler/joiner |
||||||
EN-STRGBCXB | LEDline™ RGBCX wired strip connector |
||||||
EN-STRGBCXC | LEDline™ RGBCX inter-connector |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV10024-CV | 100W Non-Dimmable 24V Constant Voltage Driver | 3.3m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 5.0m |
AA-DV2402448-CV-IP | 200W Non-Dimmable 48V Constant Voltage Driver | 6.7m |
AA-DV3202448-CV-IP | 350W Non-Dimmable 48V Constant Voltage Driver | 10.7m |
Max single run 5m |
||
