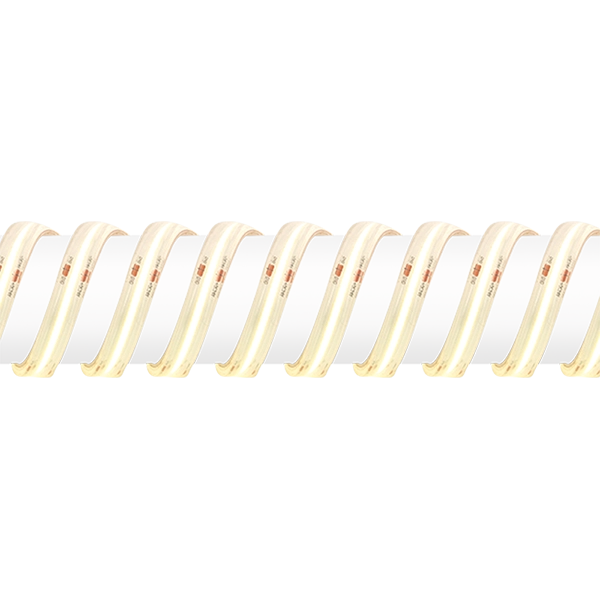

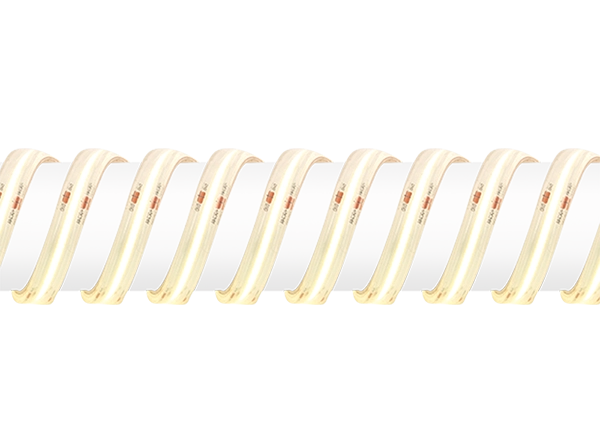

LEDline™ 24V IP67 COB Pro
Specification:
24V IP67 COB PRO Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 95lm/W
Cut points every 46mm for maximum flexibility
Beam angle of 120°
528 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 10m
3 year warranty
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12150CIP-30 | 15W | 528 | 3000K | 1275lm | 85 |  |
AA-ST12150CIP-40 | 15W | 528 | 4000K | 1350lm | 90 | |
AA-ST12150CIP-50 | 15W | 528 | 5000K | 1387lm | 92 | |
AA-ST12150CIP-65 | 15W | 528 | 6500K | 1424lm | 95 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12IP | LEDline™ COB IP67 strip connector kit | ||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 2.6m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 3.8m |
AA-DV10024-CV/strong> | 100W Non-Dimmable 24V Constant Voltage Driver | 5.3m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 8.0m |
| Max single run 5m | ||
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12150CIP-30 | 15W | 528 | 3000K | 1275lm | 85 | |
AA-ST12150CIP-40 | 15W | 528 | 4000K | 1350lm | 90 | |
AA-ST12150CIP-50 | 15W | 528 | 5000K | 1387lm | 92 | |
AA-ST12150CIP-65 | 15W | 528 | 6500K | 1424lm | 95 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12IP | LEDline™ COB IP67 strip connector kit | ||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 2.6m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 3.8m |
AA-DV10024-CV/strong> | 100W Non-Dimmable 24V Constant Voltage Driver | 5.3m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 8.0m |
| Max single run 5m | ||
