LEDline™ 24V IP67 High Efficiency
Specification:

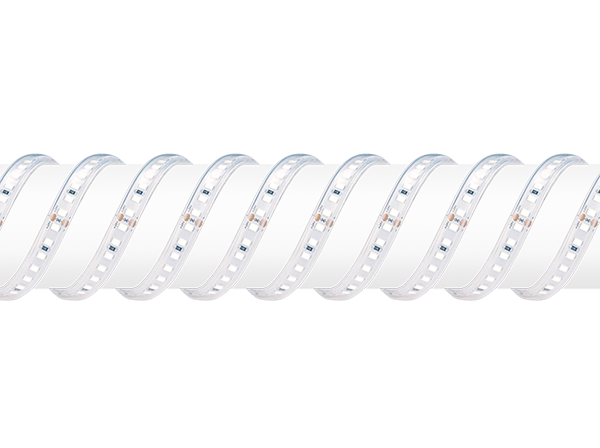

24V IP67 High Efficiency Single Colour LED Strip
Single colour flexible strip with 3M™ self adhesive backing
High efficiency up to 137lm/W
Cut points every 50mm for maximum flexibility
Beam angle of 120°
160 LEDs per metre
For runs over 5m individual lengths should be connected in parallel
Reel length of 10m
3 year warranty
| Cat. No. | Watts/m | No. of LEDs/m | Colour | lm/m | lm/W | Spec Sheets |
|---|---|---|---|---|---|---|
AA-ST12110IP-30 | 11W | 160 | 3000K | 1320lm | 120 |  |
AA-ST12110IP-40 | 11W | 160 | 4000K | 1430lm | 130 | |
AA-ST12110IP-50 | 11W | 160 | 5000K | 1469lm | 135 | |
AA-ST12110IP-65 | 11W | 160 | 6500K | 1508lm | 137 | |
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
AA-STA12IP | LEDline™ IP67 strip connector kit |
||||||
| Cat. No. | Description | Metres per driver |
|---|---|---|
| LED Drivers | ||
AA-DV4824-CV | 48W Non-Dimmable 24V Constant Voltage Driver | 3.5m |
AA-DV7224-CV | 72W Non-Dimmable 24V Constant Voltage Driver | 5.2m |
AA-DV10024-CV | 100W Non-Dimmable 24V Constant Voltage Driver | 7.3m |
AA-DV15024-CV | 150W Non-Dimmable 24V Constant Voltage Driver | 10.9m |
| Max single run 5m | ||
