BackLite+™

Specification:

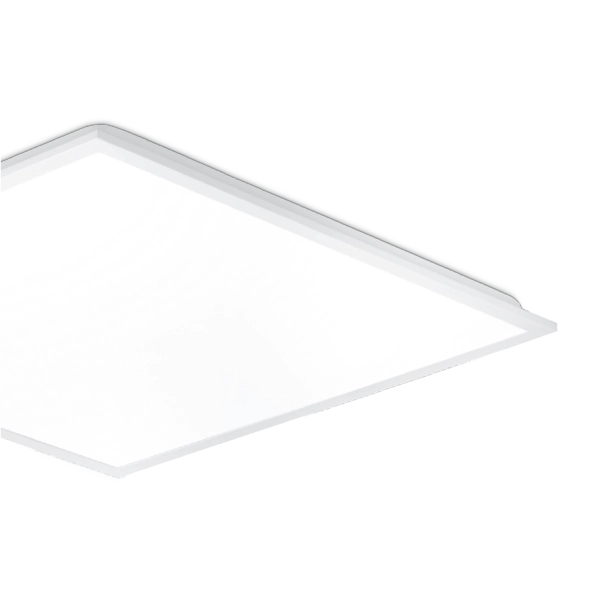

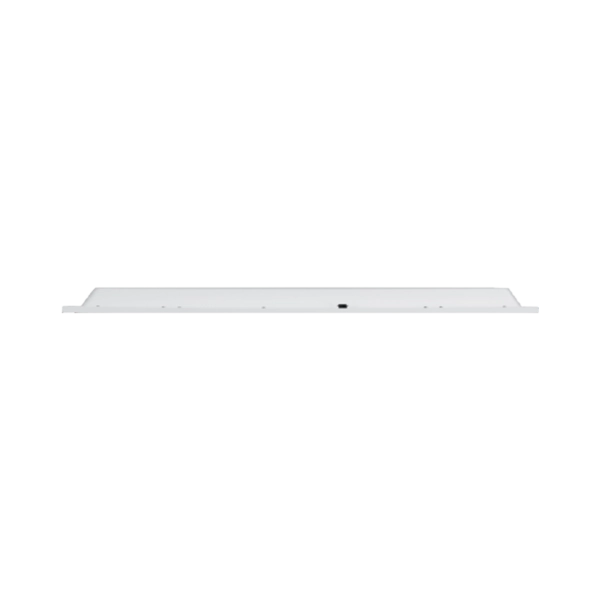

Backlite Aluminium Flat Panels

No light guide, removing the risk of yellowing
Delivering 140lm/W

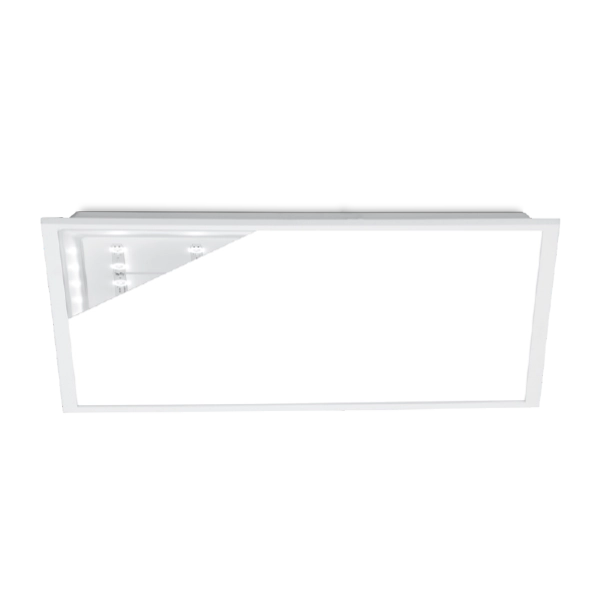

PMMA lenses for uniformity of light
SDCM <4 providing consistent light colour quality
Lifetime is not affected by frequent switching when using occupancy controls
Power Factor > 0.9
Suitable for installation in 15 and 24mm T-bar ceilings
Flicker free
1.5kV surge protection

Product Categories

Cat. No.Wattslm/WLumensColourBeamSpec SheetsIES Files
600x600mm
EN-LPB6060B-40
29W1404060lm4000K110°DownloadDownload
EN-LPB6060B-50
29W1404060lm5000K110°DownloadDownload
1200x600mm
EN-LPB1260B-40
40W1405600lm4000K120°DownloadDownload
EN-LPB1260B-50
40W1405600lm5000K120°DownloadDownload
1200x300mm
EN-LPB1230B-40
29W1404060lm4000K110°DownloadDownload
EN-LPB1230B-50
29W1404060lm5000K110°DownloadDownload

Triac, Dali, 1-10V dimmable & EM options available, contact sales office for more information

Cat. No.DescriptionDimensions
Surface Mount Boxes
SV-SM103B
Surface mount box for EN-LPB6060B600 x 600 x 50mm
SV-SM106B
Surface mount box for EN-LPB1260B1200 x 600 x 50mm
SV-SM107B
Surface mount box for EN-LPB1230B1200 x 300 x 50mm

Cat. No.Wattslm/WLumensColourBeamSpec SheetsIES Files
600x600mm
EN-LPB6060B-40
29W1404060lm4000K110°DownloadDownload
EN-LPB6060B-50
29W1404060lm5000K110°DownloadDownload
1200x600mm
EN-LPB1260B-40
40W1405600lm4000K120°DownloadDownload
EN-LPB1260B-50
40W1405600lm5000K120°DownloadDownload
1200x300mm
EN-LPB1230B-40
29W1404060lm4000K110°DownloadDownload
EN-LPB1230B-50
29W1404060lm5000K110°DownloadDownload

Triac, Dali, 1-10V dimmable & EM options available, contact sales office for more information

Cat. No.DescriptionDimensions
Surface Mount Boxes
SV-SM103B
Surface mount box for EN-LPB6060B600 x 600 x 50mm
SV-SM106B
Surface mount box for EN-LPB1260B1200 x 600 x 50mm
SV-SM107B
Surface mount box for EN-LPB1230B1200 x 300 x 50mm
