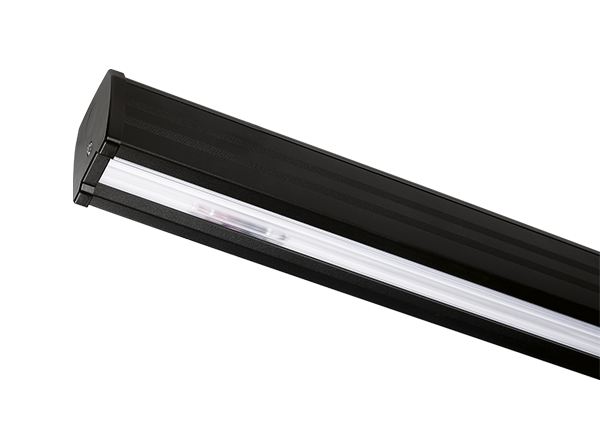

Axis™

Specification:

Retail Seamless Linear

High quality aluminium body
Wattage selectable
Polycarbonate back cover
Modular design
Linkable allows for continuous uninterrupted linear light.
Supplied with mounting clips and can be ordered separately
Flicker free
2kV surge protection

Contact Us

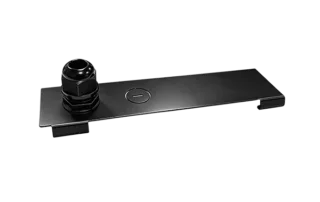

Feed in Gland Plate

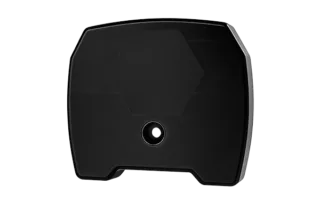

End Caps

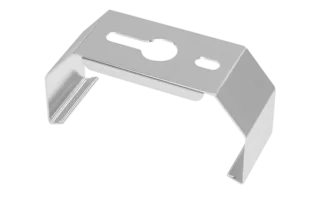

Mounting Clip

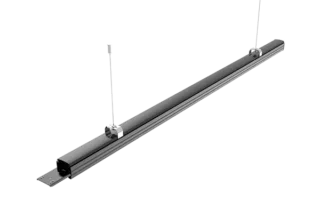

Suspension Kit

Skus
Accessories

Skus

Cat. No.	Watts	lm/W	Lumens	Colour	Beam
600mm Feed in unit
AA-RLS6WS-30B	11W / 14W / 17W / 20W	up to 155	1540-2800lm	3000K	90°
AA-RLS6WS-40B	11W / 14W / 17W / 20W	up to 155	1650-3000lm	4000K	90°
600mm Joiner unit
AA-RLJ6WS-30B	11W / 14W / 17W / 20W	up to 155	1540-2800lm	3000K	90°
AA-RLJ6WS-30B	11W / 14W / 17W / 20W	up to 155	1650-3000lm	4000K	90°
1200mm Feed in unit
AA-RLS12WS-30B	22W / 28W / 34W / 40W	up to 155	3080-5600lm	3000K	90°
AA-RLS12WS-40B	22W / 28W / 34W / 40W	up to 155	3300-6000lm	4000K	90°
1200mm Joiner unit
AA-RLJ12WS-30B	22W / 28W / 34W / 40W	up to 155	3080-5600lm	3000K	90°
AA-RLJ12WS-40B	22W / 28W / 34W / 40W	up to 155	3300-6000lm	4000K	90°
1500mm Feed in unit
AA-RLS15WS-30B	34W / 42W / 51W / 60W	up to 155	4760-8400lm	3000K	90°
AA-RLS15WS-40B	34W / 42W / 51W / 60W	up to 155	5100-9000lm	4000K	90°
1500mm Joiner unit
AA-RLJ15WS-30B	34W / 42W / 51W / 60W	up to 155	4760-8400lm	3000K	90°
AA-RLJ15WS-40B	34W / 42W / 51W / 60W	up to 155	5100-9000lm	4000K	90°

Accessories

Cat. No.	Description
AA-RLA-CT	Feed-In Gland Accessory, for starting a run
AA-RLA-EC	End-Cap Accessory, for ending a run
AA-RLA-MC	Mounting Clip Accessory

Cat. No.	Watts	lm/W	Lumens	Colour	Beam
600mm Feed in unit
AA-RLS6WS-30B	11W / 14W / 17W / 20W	up to 155	1540-2800lm	3000K	90°
AA-RLS6WS-40B	11W / 14W / 17W / 20W	up to 155	1650-3000lm	4000K	90°
600mm Joiner unit
AA-RLJ6WS-30B	11W / 14W / 17W / 20W	up to 155	1540-2800lm	3000K	90°
AA-RLJ6WS-30B	11W / 14W / 17W / 20W	up to 155	1650-3000lm	4000K	90°
1200mm Feed in unit
AA-RLS12WS-30B	22W / 28W / 34W / 40W	up to 155	3080-5600lm	3000K	90°
AA-RLS12WS-40B	22W / 28W / 34W / 40W	up to 155	3300-6000lm	4000K	90°
1200mm Joiner unit
AA-RLJ12WS-30B	22W / 28W / 34W / 40W	up to 155	3080-5600lm	3000K	90°
AA-RLJ12WS-40B	22W / 28W / 34W / 40W	up to 155	3300-6000lm	4000K	90°
1500mm Feed in unit
AA-RLS15WS-30B	34W / 42W / 51W / 60W	up to 155	4760-8400lm	3000K	90°
AA-RLS15WS-40B	34W / 42W / 51W / 60W	up to 155	5100-9000lm	4000K	90°
1500mm Joiner unit
AA-RLJ15WS-30B	34W / 42W / 51W / 60W	up to 155	4760-8400lm	3000K	90°
AA-RLJ15WS-40B	34W / 42W / 51W / 60W	up to 155	5100-9000lm	4000K	90°

Cat. No.	Description
AA-RLA-CT	Feed-In Gland Accessory, for starting a run
AA-RLA-EC	End-Cap Accessory, for ending a run
AA-RLA-MC	Mounting Clip Accessory
